SPECIFICATIONS

High Speed: USB2.0

Picture format: MJPEG /YUV

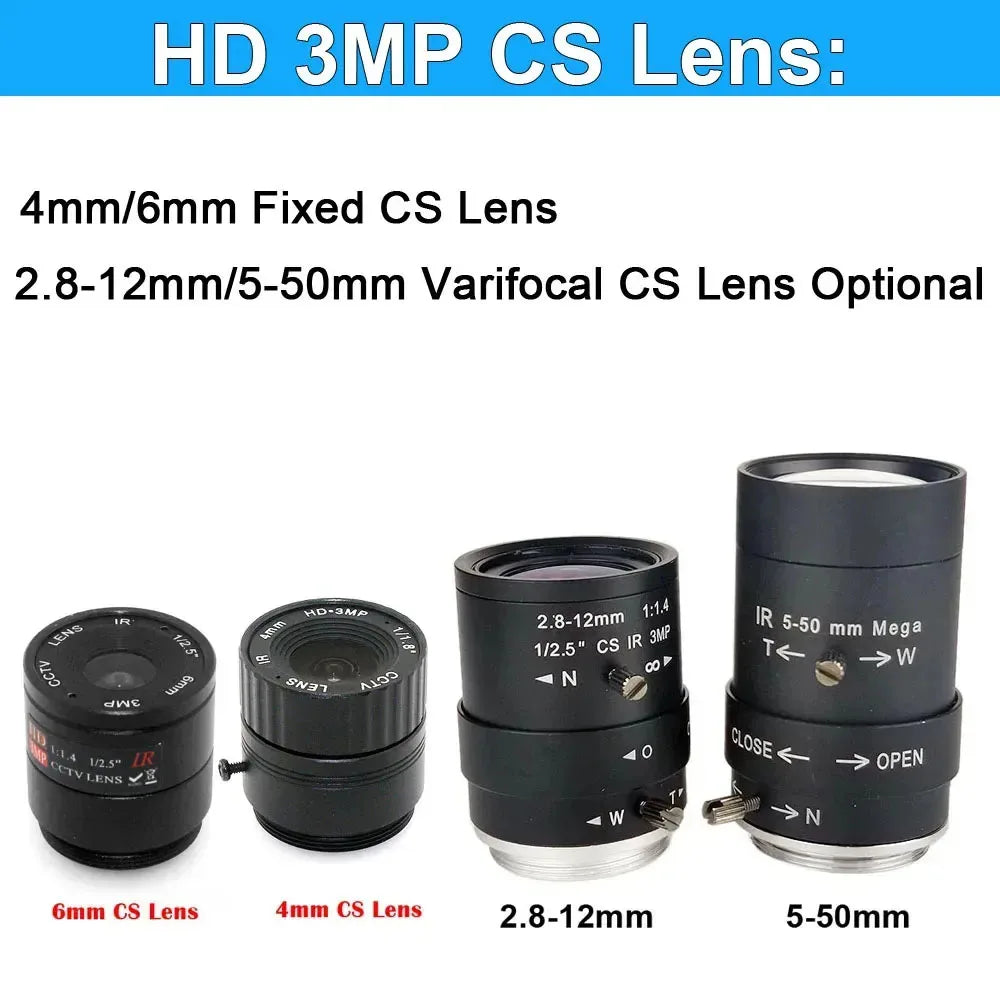

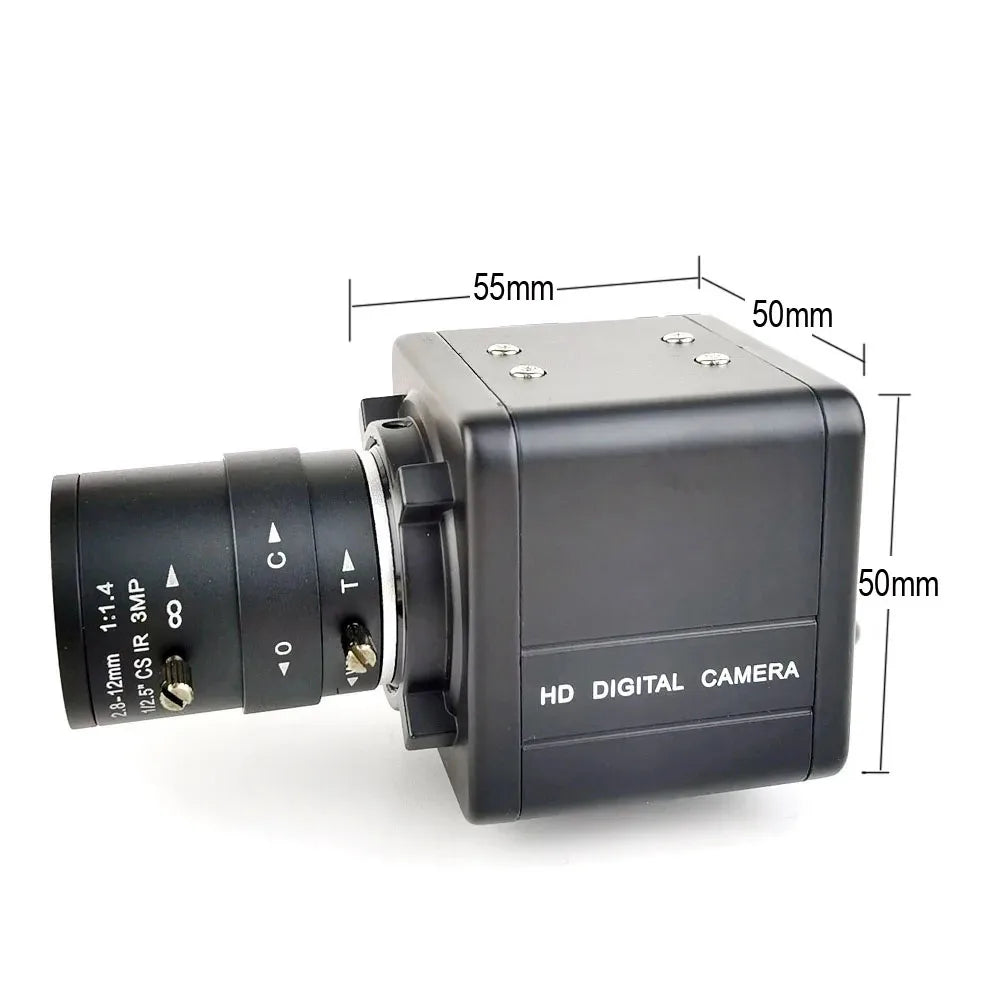

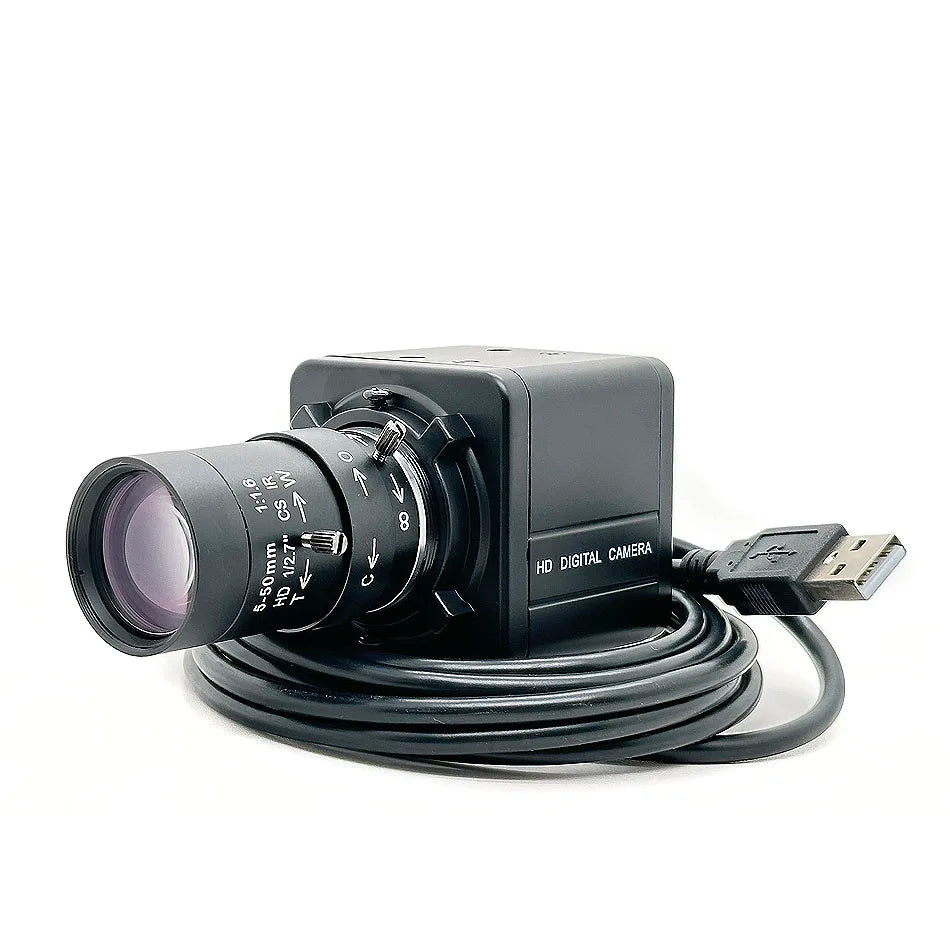

CS Lens: 2.8-12mm /5-50mm Varifocal lens optional ,4mm CS Lens Optional

USB Camera Sensor: 8MP IMX415 CMOS/4MP F5253 CMOS

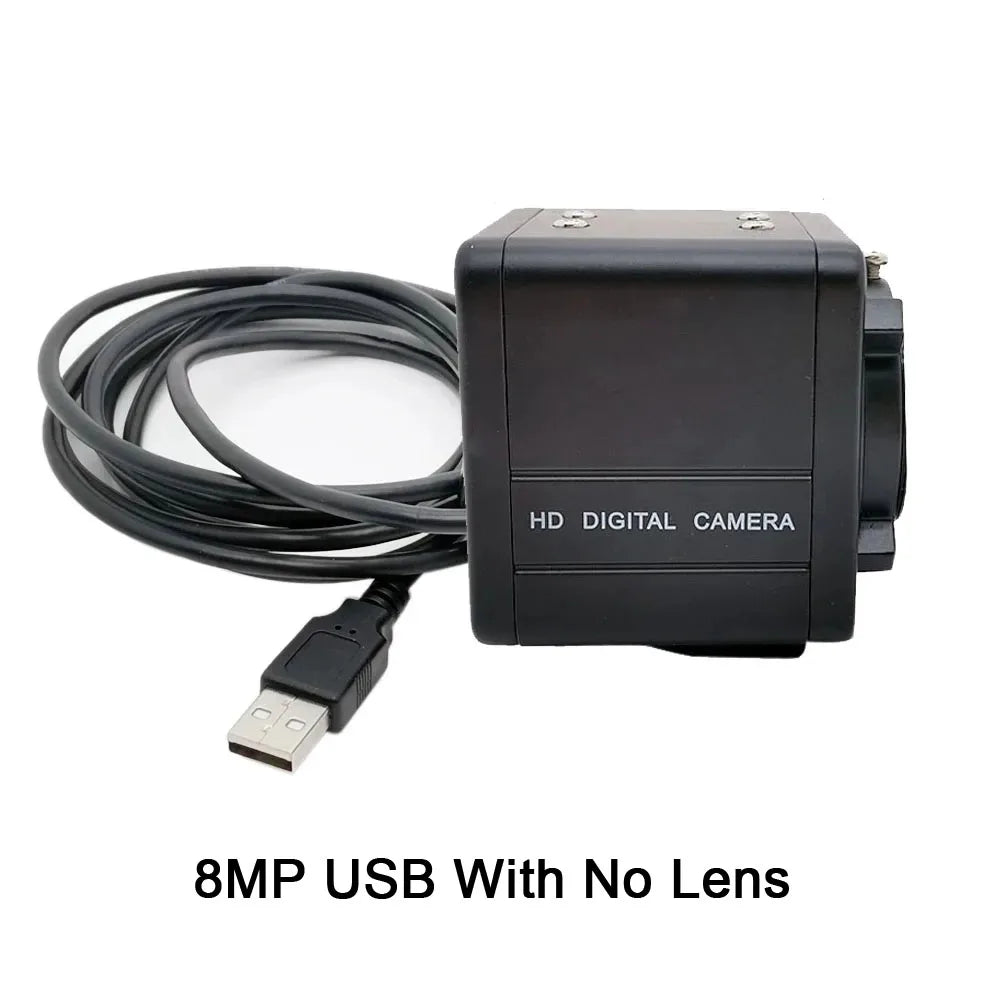

Cable: 8MP IMX415 with 1M Cable

Cable: 4MP USB with 1.5M Cable

Brand Name: sufco

Model Number: SU100-HB

High Definition: 8.0 Megapixels

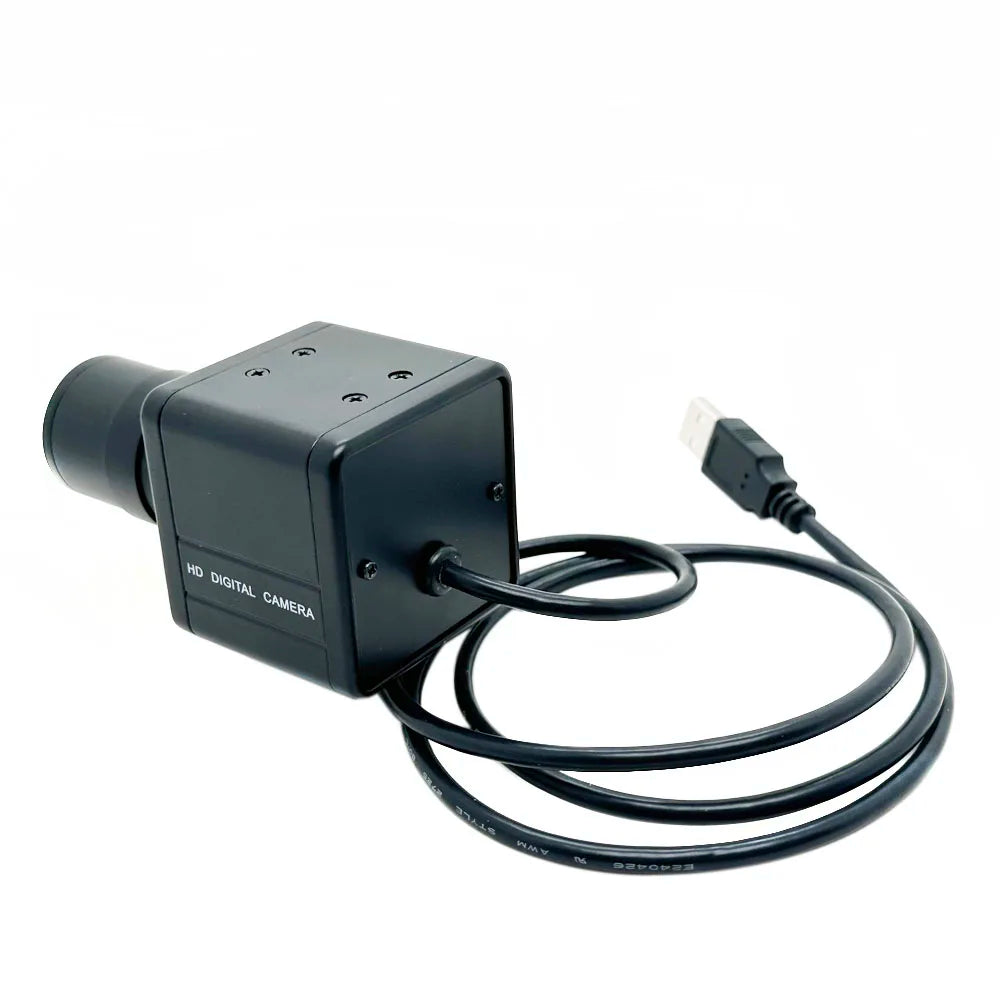

Style: Box Camera

Connectivity: USB

Color: black

Origin: Mainland China

Lens (mm): 2mm

Power Supply(V): DC 5V

Supported Operating Systems: Windows XP

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Megapixels: 8MP

Power Supply: Normal

Shell Material: Metal

Installation: Normal

Video Compression Format: MJPEG

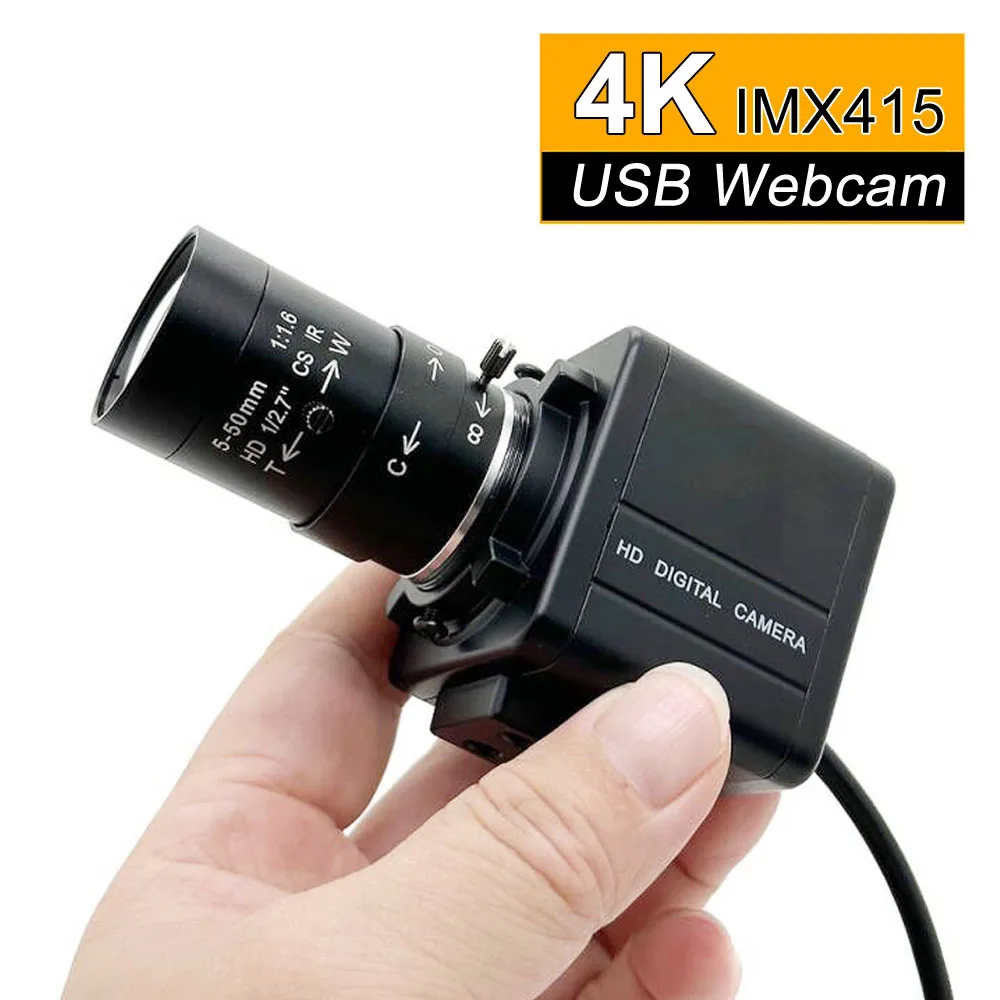

8MP 4K USB Webcam IMX415 With 5-50mm Varifocal CS Lens 2K 4MP F5253 Box Industrial Usb Camera OTG UVC Compatible Plug And Play

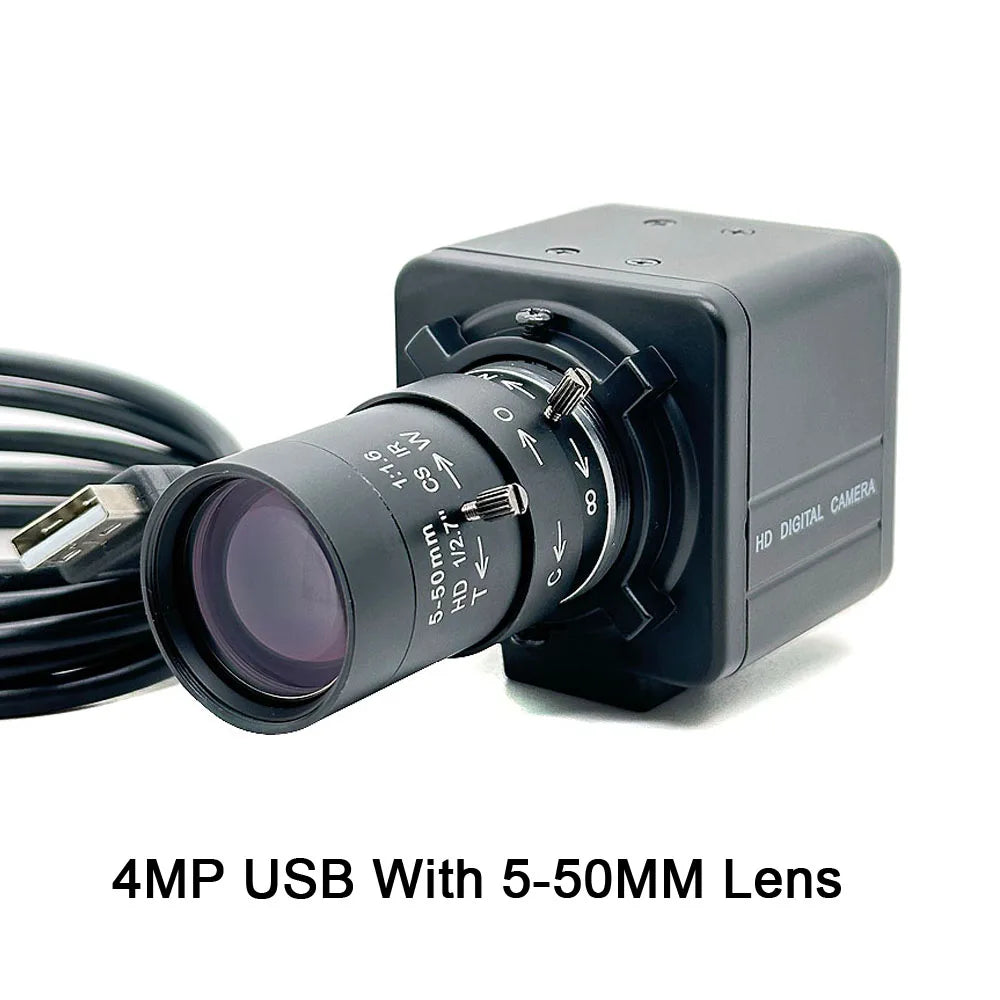

4MP USB Feature:

1.High Speed 4MP HD USB Camera

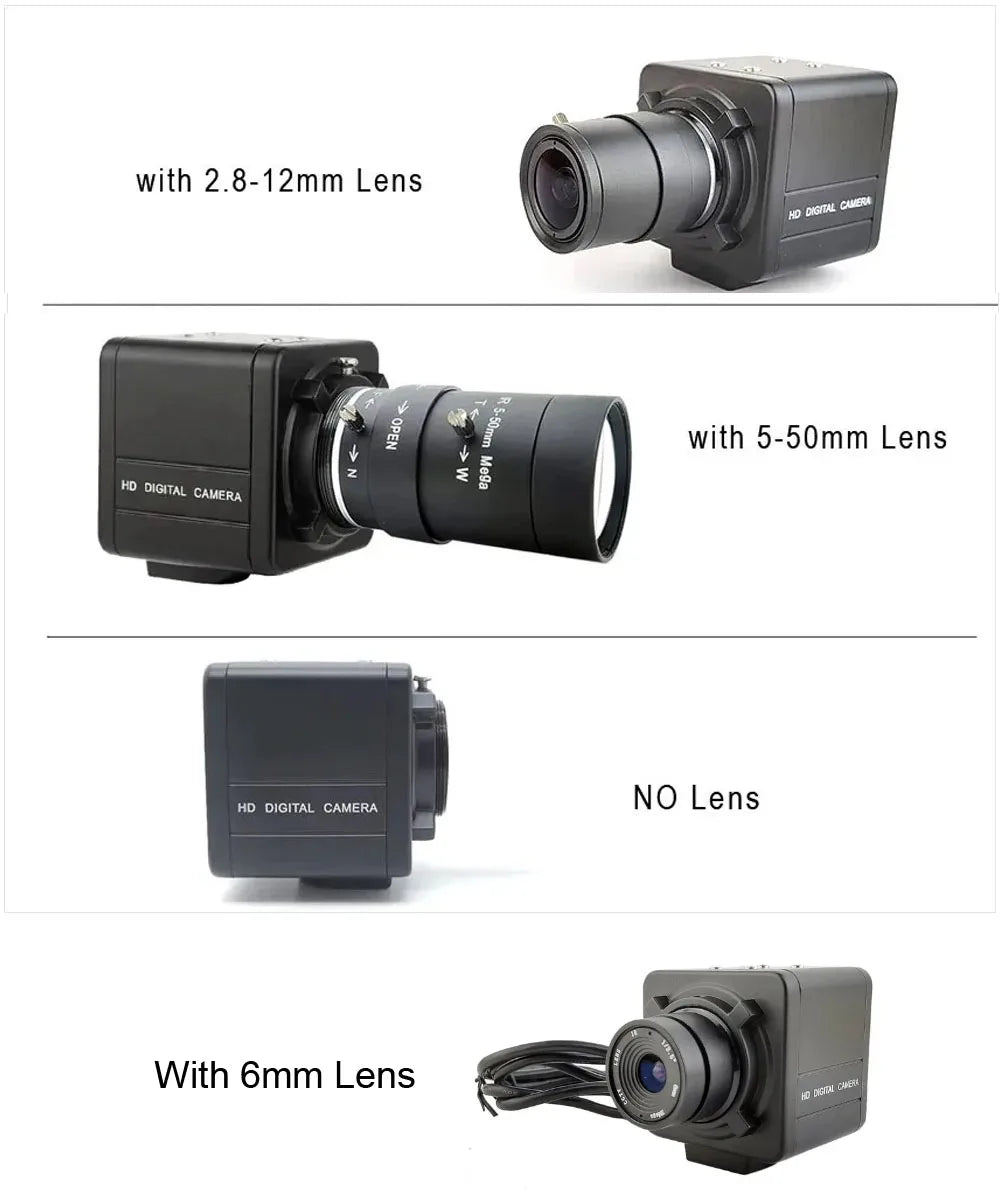

2.6mm/2.8-12mm/5-50mmLens can choose

3.High frame rate MJPG– deliver 30 fps in 2560x1440 resolution, 30 fps in 1920X1080 resolution.

4.CMOS F5253 Sensor for high quality image and low power consumption.

5.High speed USB 2.0 interface for high resolution PC camera interface.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

8.Super small outline and thin profile for embedded applications.

9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

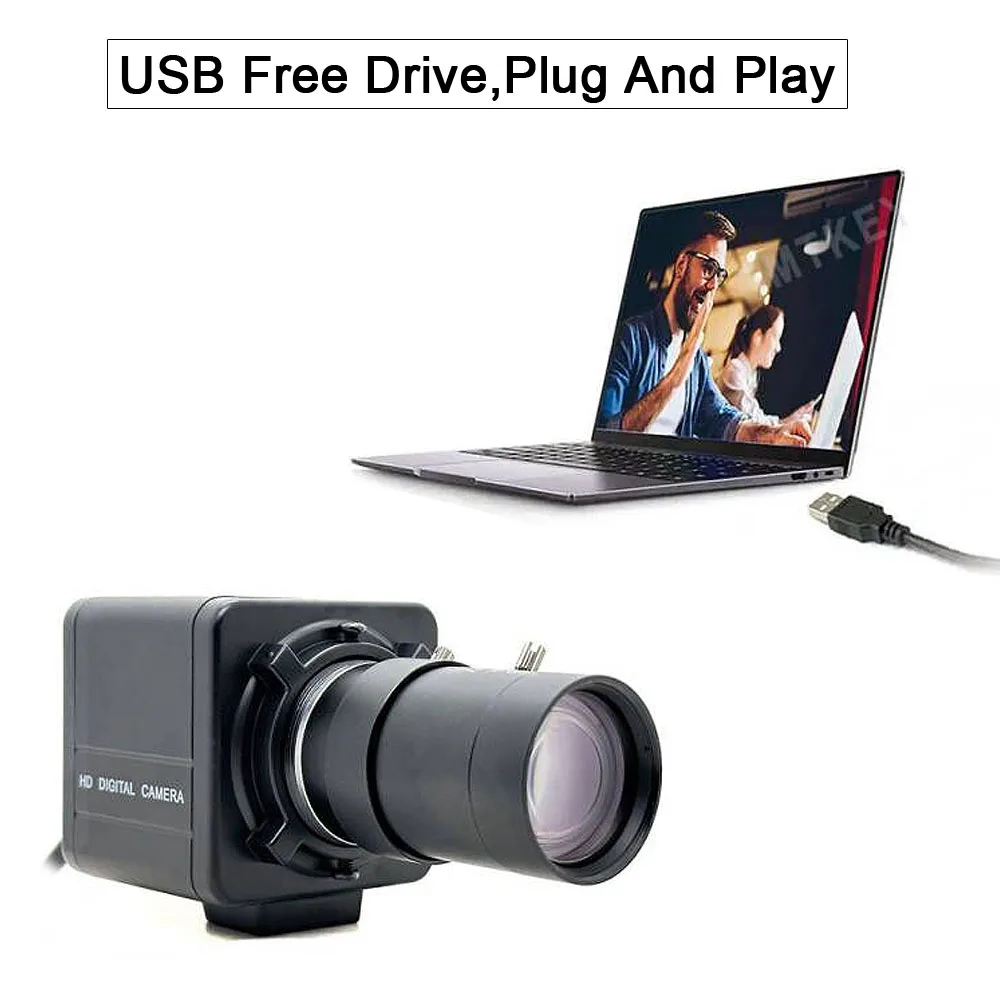

10.Camera With UVC, Drive-free.

Specification:

Sensor：1/2.9'' CMOS GC4053

Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels

Max resolution: 2560x1440

Output image format: MJPEG

USB protocol: USB2.0 HS/FS

Support free drive protocol: USB Video Class (UVC)1.1

Audio: With Microphone

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Frame rate:

2560(H)x1440 （V）Pixels MJPEG 30fps

1920(H)x1080 （V） Pixels MJPEG 30fps

1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps

640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps

Adjustable parameters: brightness, contrast, color saturation, Gamma, WB

Night Vison: no

Minimum illumination: 0.1(F1.2，AGC ON)

View Angle : Wide angle

Working voltage: DC 5V

Working current: 150mA

Working temperature: -10～60℃

Board size/weight: 32X32mm

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

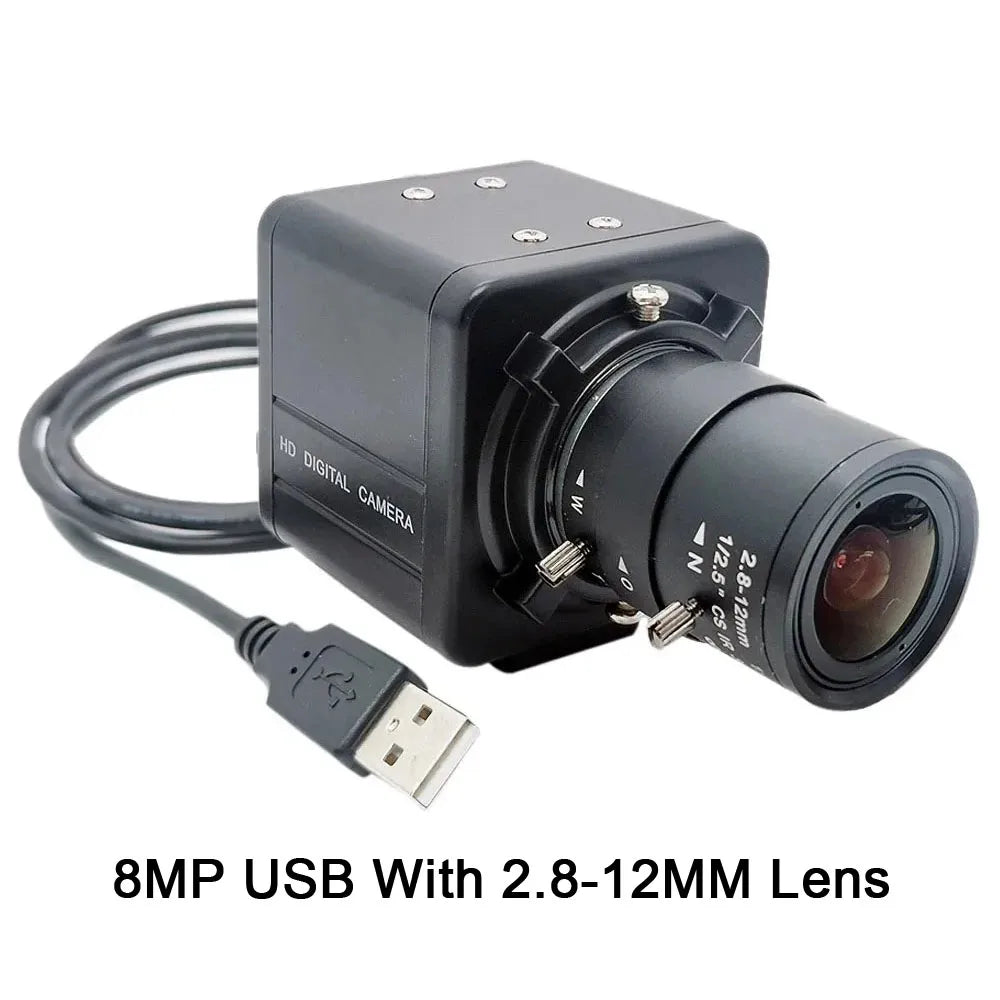

8MP USB Product Parameters:

CMOS/chip model: 4K 8MP SONY IMX415

Photosensitive size: 1/2.8 inch

Single pixel size: 1.45um*1.45um

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Effective maximum resolution & frame rate:

MJPG (compressed format): 3840*2160/30fps.MJPG

Common resolution & frame rate: 2592*1944/30fps.MJPG   1920*1080/60fps;MJPG ,  1280*960/30fps;MJPG ,

1280*720/30fps;MJPG ,  800*600/30fps;MJPG  640*480/30fps; MJPG,  320*240/30fps; MJPG

YUV (compressed format): 800*400/20 fps/YUV,   640*480/20fps/YUV

Working voltage and current: 5V*170mA-240mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux,Android, etc. (Compliant with UVC protocol)

Application areas: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Etc...

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

PCB (board frame) size: 38*38mm, (compatible with 32*32)

Power supply mode: USB BUS POWER

USB Cable: 1m
