Revopoint MIRACO Pro 3D Scanner for 3D Printing Handheld, Up to 0.02mm Precision, for Small to Large Objects, 3d Scanner Camera

$2,963.00 AUD

~~$4,741.00 AUD~~ $2,963.00 AUD

Sale Sold out

Ships From China Russian Federation

Quantity

SPECIFICATIONS

Brand Name: Revopoint

Origin: Mainland China

Hign-concerned Chemical: None

Non-Contact Passive: Photometric Stereo

Certification: CE

Certification: FCC

Certification: RoHS

Certification: KC

Certification: weee

Non-Contact Active: Structured Lighting

Model Number: MIRACO PRO

Product Name: MIRACO PRO 3D Scanner

Technology: Quad-camera Infrared Structured Light

Single-frame Precision: Up to 0.02 mm

Single-frame Accuracy: Up to 0.05 mm

Fused Point Distance: Up to 0.05 mm

Single Capture Area at Nearest Distance: 28 x 53 mm at 100 mm

Single Capture Area at Furthest Distance: 975 x 775 mm at 1000 mm

Scanning Mode: Continuous, Single-shot

Scanning Speed: Up to 15 fps

Minimum Scan Volume: 10 x10 x10 mm

Working Distance: 100-1000 mm

Auxiliary Lighting: Infrared Fill Lights, Flash LEDS

Position Sensors: 9-axis IMU

Battery: Internal 5000 mAh, 50W fast charging

CPU: 8 core ARM A76 , 2.4GHz, Mali G52 GPU

Dimensions(LxWxH): 200 x50 x110 mm

Internal Storage: 256GB eMMC

Memory (RAM): 32 GB DDR4 Memory

Touchscreen Display: 6 inch

Depth Camera Resolution: up to 2 Megapixels

RGB Camera Resolution: 48 Megapixels

Connector Type: USB Type-C

Output Formats: PLY, OBJ and STL

Minimum PC Requirements: No PC required

Recommended PC Requirements: No PC required

Compatible Operating Systems: Windows 10/11(64-bit), macOs

Usage Scenario: Car/Industrial part/Dentistry/Design

Peculiarity

- All-in-one professional gradefull-color portable 3D scanner.

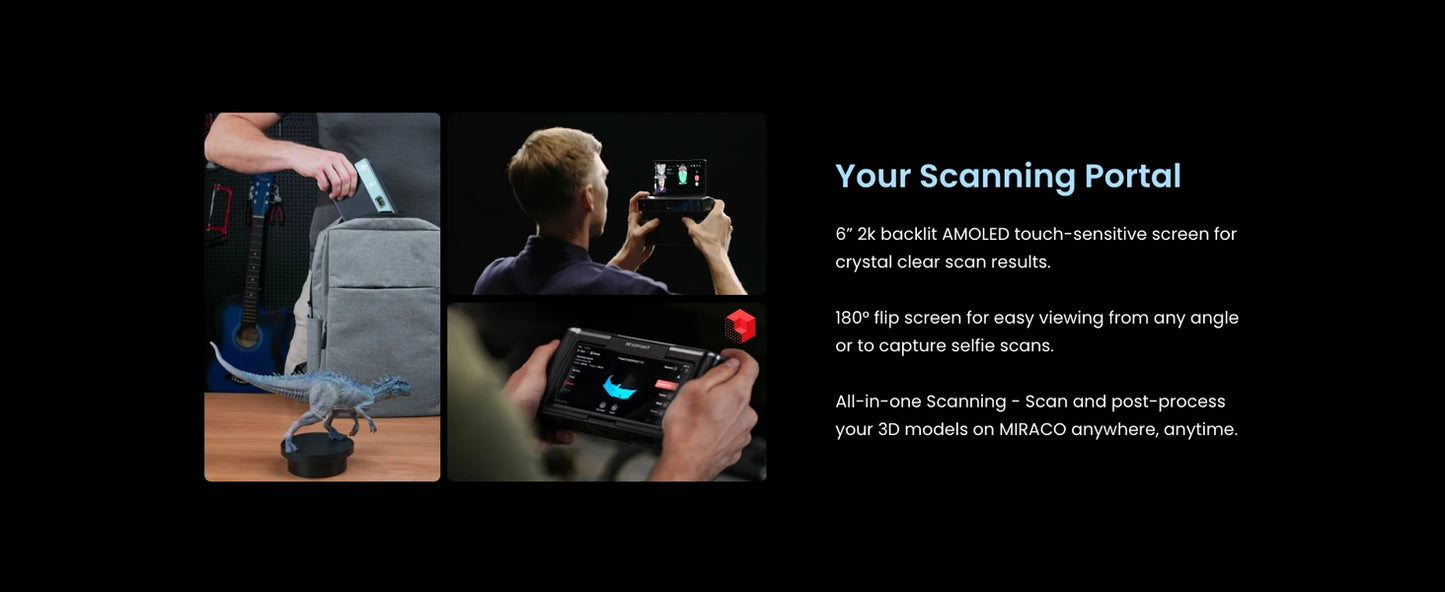

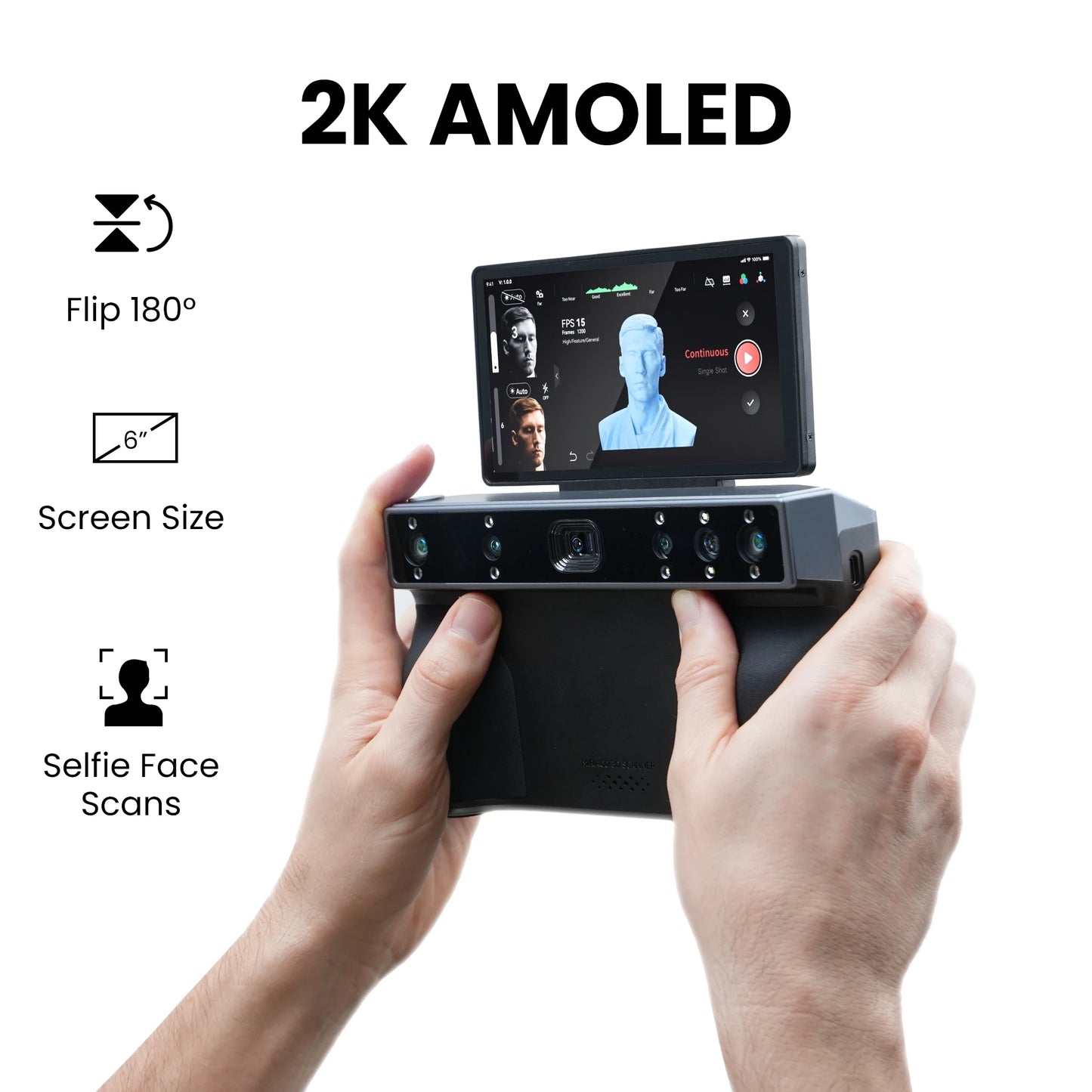

- 6-inch OLED HD touch screen to view scan results at any time.

- Continuous and single shot dual scan mode for a better scanning experience.

Parameter Information

- Position Sensors 9-axis IMU

- Scanning Speed Up to 15 fps

- Connection USB Type-C &WiFi-6

- Working Distance 100 mm - 1000 mm

- Single-frame Precision Up to 0.05 mm

- 32GB RAM, 5000mAh battery capacity, two hours of continuous scanning.

All-in-one Scanning

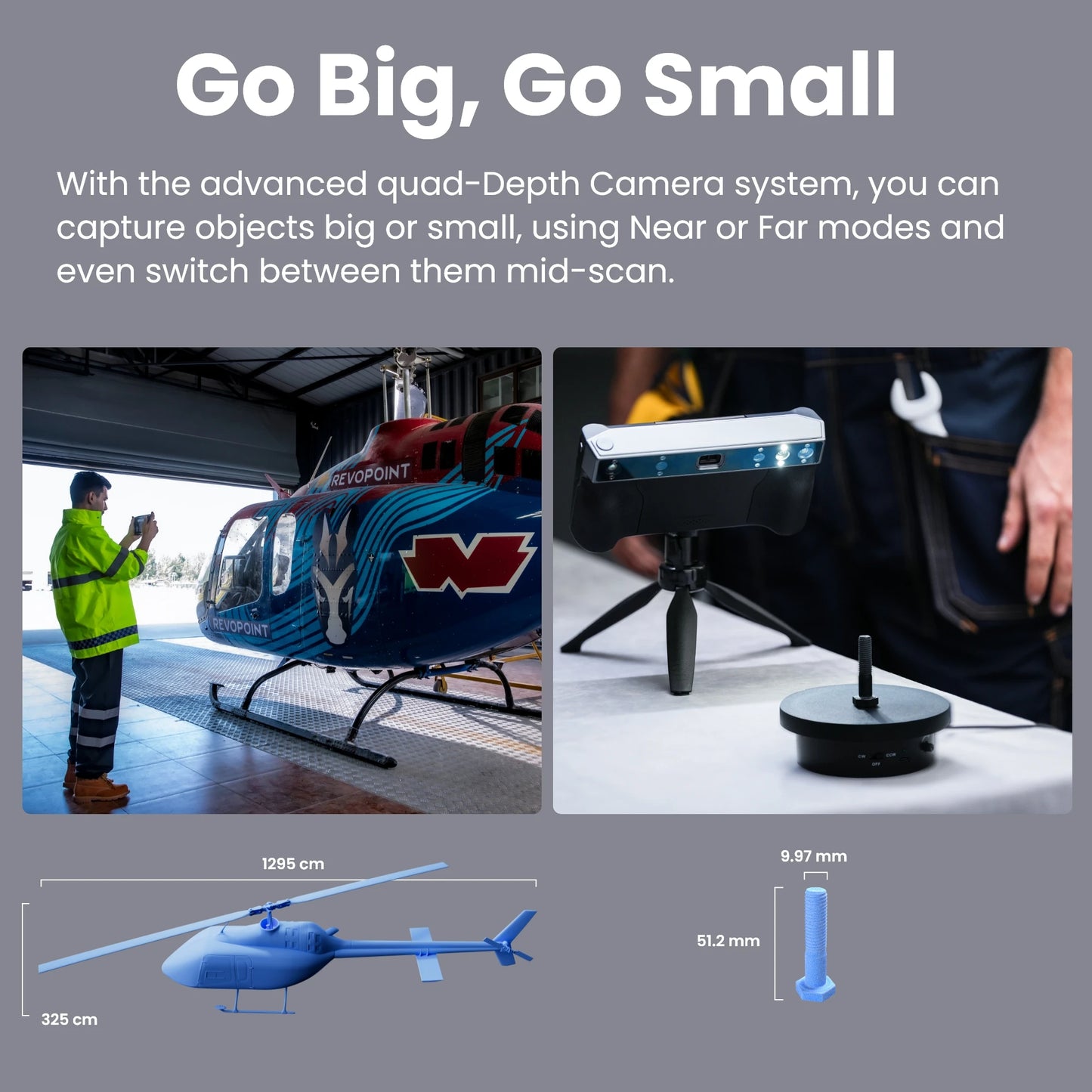

Go Big, Go Small

- Never need to switch scanners again as MIRACO PRO can capture big and small objects with its advanced quad Depth Camera structured infrared light system. You can even switch modes mid-scan to capture intricate details or shape data.

Long Scans, Fast Charging

- Take your time with up to 2 hours of scanning provided by MIRACO PRO's energy-efficient hardware and 5,000 mAh battery. And with 50W fast charging, you can power up MIRACO PRO to 80% in only 35 mins.

No Cables, No PC Needed

- The lightweight (750g) standalone 3D scanner goes anywhere and scans anything without worrying about lugging a laptop or fiddling with cables. Seamlessly switch between a turntable scan or a stable two-handed handheld scan for optimal hand-eye coordination.

Two Capture Modes

- Single-Shot Mode
Don’t worry about tracking or dealing with color-contrasted surfaces again with MIRACO PRO's Single-shot mode, making it a snap to capture feature-rich or featureless objects with precise tracking, high accuracy, and minimal point cloud overlap.

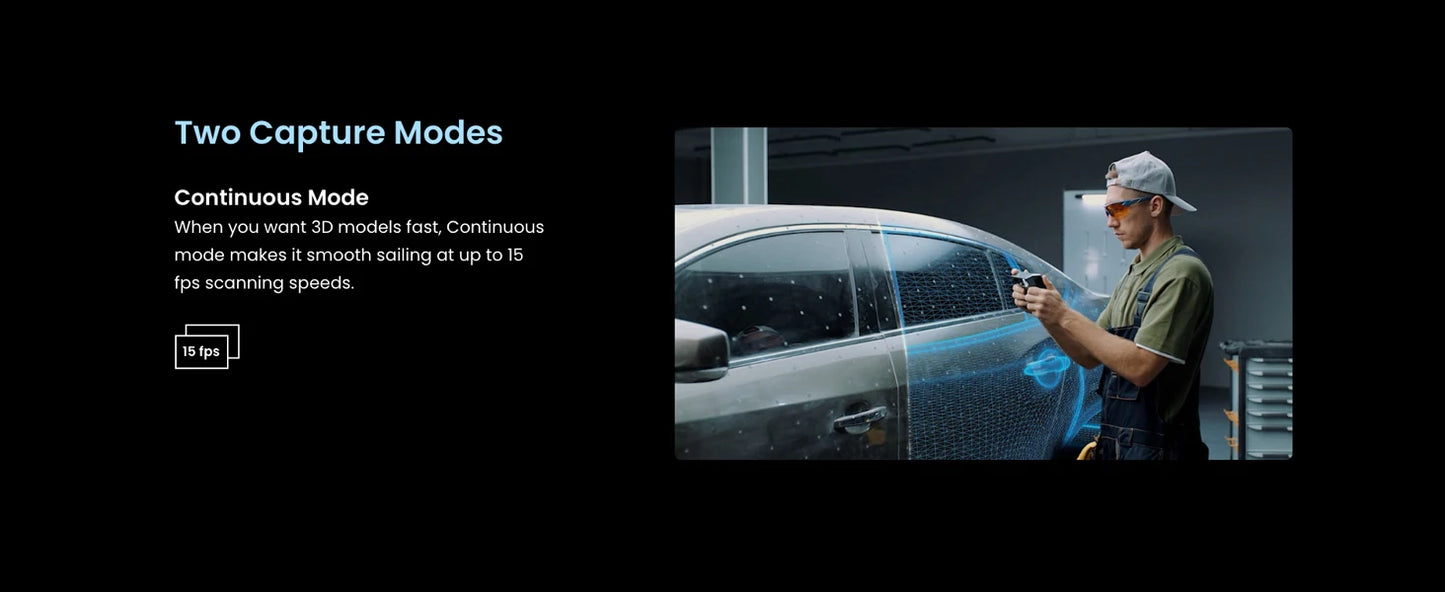

- Continuous Mode
When you want 3D models fast, Continuous mode makes it smooth sailing at up to 15 fps scanning speeds for Near and Far mode scanning.

Powerhouse in Your Hands

- Capture and process scans fast with MIRACO PRO's powerful 8-core 2.8GHz processor,32 GB (up to 10,000 captured frames), and 256 GB hard drive.The main difference between 32GB versions is the number scanning frames they recommended to handle. Usually, the larger the amount of raw data, the more memory is required for scanning,fusion,and mapping processes.

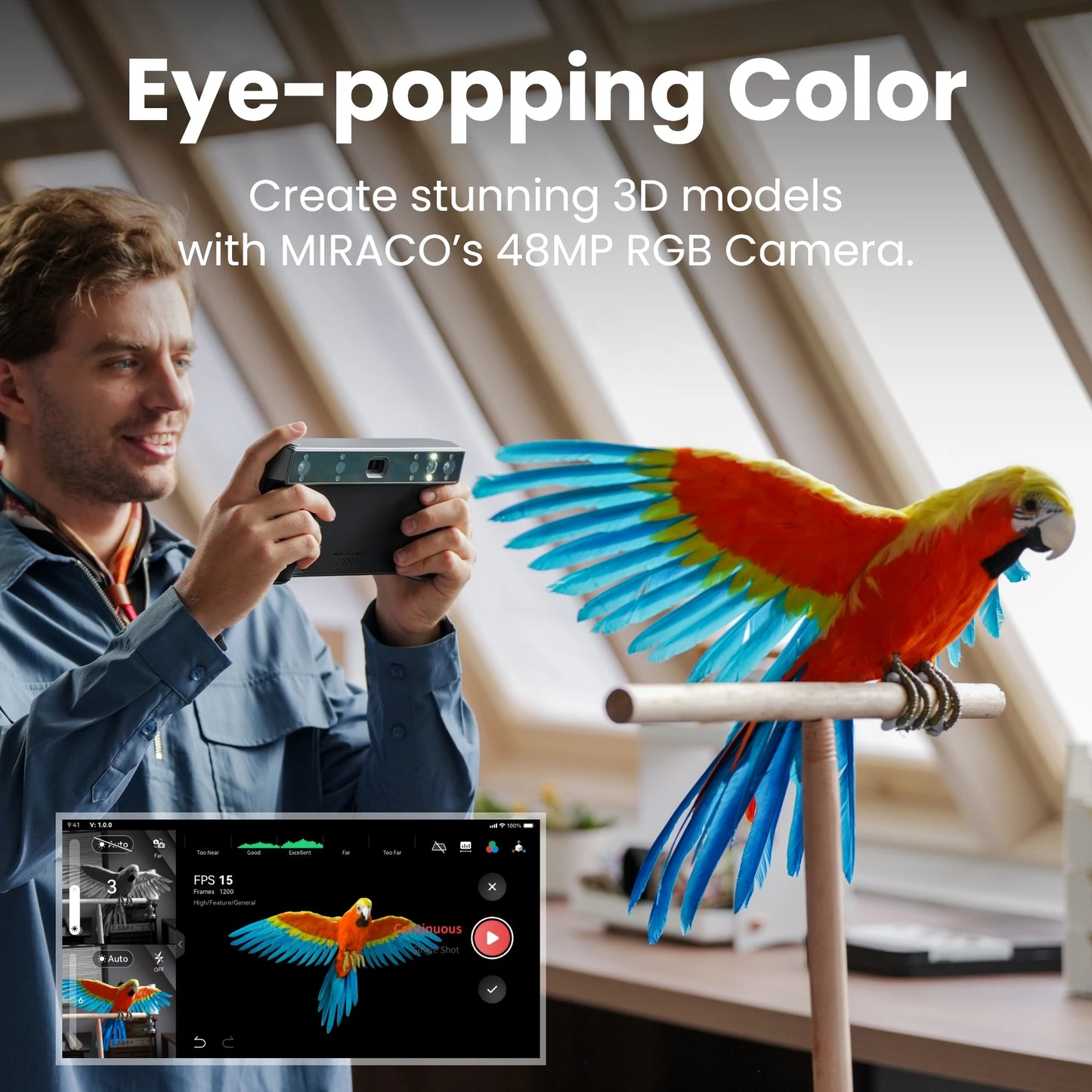

Eye-popping Color

- Create textured colored 3D models that make you go WOW with MIRACO PRO's 48-megapixel RGB Camera in either Single-shot mode to prevent motion-blur errors or Continuous mode for faster color model creation.

Usage Scenario
